Hard Clad & Silica High NA Fibers

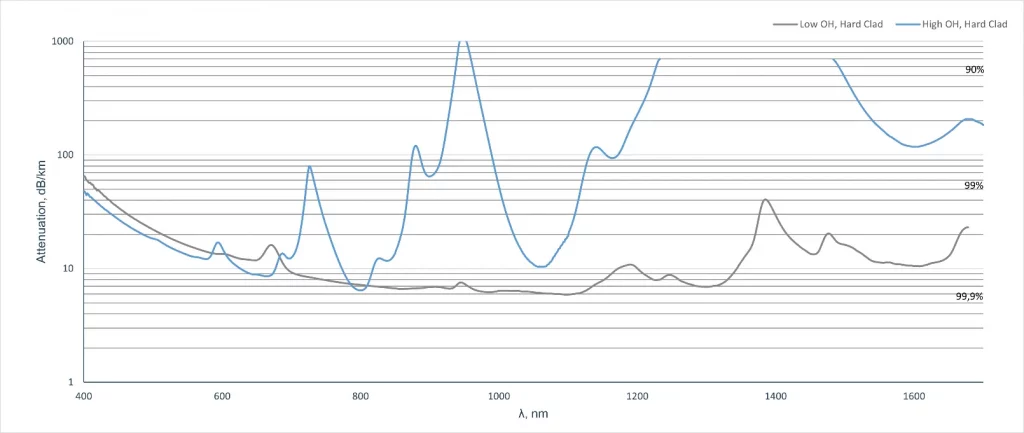

SILICA/hard clad step index low OH fiber (300-2400nm) and high OH fibers (190-1200nm)
These pure fused silica/ Hard Polymer fibers are characterized by high numerical apertures for a wide range of applications from long-range lighting to photodynamic therapy. This high-quality fiber features easy termination without bulb effect and is a cost-effective alternative to quartz/quartz fibers.
We offer a selection of different types and sizes of sleeves as well as individually designed products and sizes according to your specifications.
Technical Data
| Type of fiber | High OH (190-1200nm) Fibers | Low OH (300-2400nm) Fibers |
| OH content | High >700 ppm | Low <1 ppm |
| Core diameter (µm) | Available from 100µm to 2000µm | |
| Numerical Aperture (NA) | 0.37±0.02 | 0.48±0.02 | 0.52±0.02 | 0.57±0.02 or customised | |
| Standard prooftest | Nylon, ETFE, Acrylate Jacket : 100 kpsi | |
| Minimum Bending Radius | 50×cladding diameter (short-term mechanical stress) 150×core diameter (during use with high laser power) | |
Applications
Industrial / Scientific
- Spectroscopy
- Sensors
- Laser welding / soldering / marking
- Laser delivery
- Nuclear plasma diagnostics
- Analytical instruments
- Laser diode pigtailing
- Pyrometry
- Semiconductor capital equipment
Medical
- Medical diagnostics
- Laser delivery
- Photodynamic Therapy
SILICA/SILICA High NA Fibers (400-2000nm)
We are proud to introduce this line of high NA Ge-Doped fused Silica/F-doped fused silica fibers. They offer unmatched performance with their 0.37 numerical aperture. Further NAs on request, options of different Buffers and Jacket on request too.
Ideal for a broad range of applications, from spectroscopy to sensing, these fibers exhibit exceptional spectral transmission from 400 – 2400 nm.
Technical Data
| Type of fiber | Silica/Silica High NA Fibers (200-2000nm) |
| Core diameter (µm) | Available from 50µm to 1000µm |
| Core/Cladding Ratios | Standard : 1:1.1 ; Others : 1 :1.04 | 1 :1.2 | 1 :1.4 or customised |
| Numerical Aperture (NA) | 0.37±0.02 |
| Standard prooftest | Nylon, ETFE, Acrylate: 100 kpsi ; Polyimide: 70 kpsi |
| Minimum Bending Radius | 50×cladding diameter (short-term mechanical stress) 150×core diameter (during use with high laser power) |
Applications
Industrial / Scientific
- Spectroscopy
- Sensors
- Laser welding / soldering / marking
- Laser delivery
- Nuclear plasma diagnostics
- Analytical instruments
- Laser diode pigtailing
- Pyrometry
- Semiconductor capital equipment
Medical
- Medical diagnostics
- Laser delivery
- Photodynamic Therapy
